Nibs of the 1960s: Sailor, part II

TL;DR: In this series of posts, I explore the nibs of the 1960s. First up: the nibs produced by Sailor, starting with their pocket pens.

Previous in the series: Nibs of the 1960s: Sailor, part I.

Nib types(*) present in this post:

Type 4′ (6): The Sailor “kite” nib, in 14k,
Type 7: The Sailor “logo board” nib,
Type 8: The Sailor Magna-L nib, and
Type 9: The Sailor Magna-L Mini nib.

(*) All nib types are named. The nomenclature is not standard but proposed here.

Type 4′ (or 6, after the five types introduced in the previous part): The Sailor “kite” nib, in 14k (Figures 4’a and 4’b).

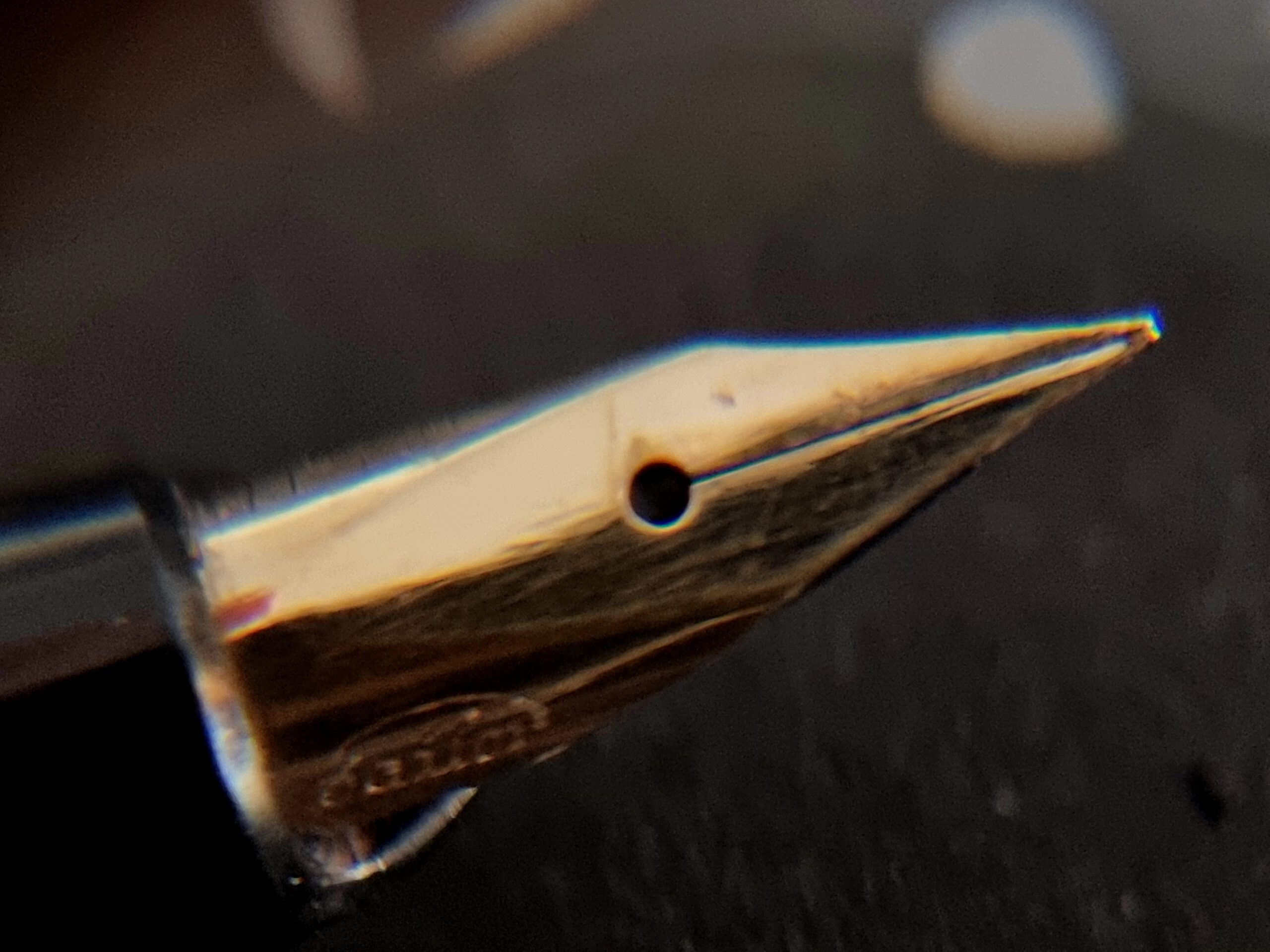

Sailor 1960s - 14k - Reverse Trim - Nib Overview — **Figure 4’a**. Nib overview of a 1960s Sailor pocket pen. The pen’s clip is gold-plated, but the rest of the cap and especially the band are chrome-plated – a “reverse trim” in Richard Binder’s taxonomy. The nib is 14k-gold.

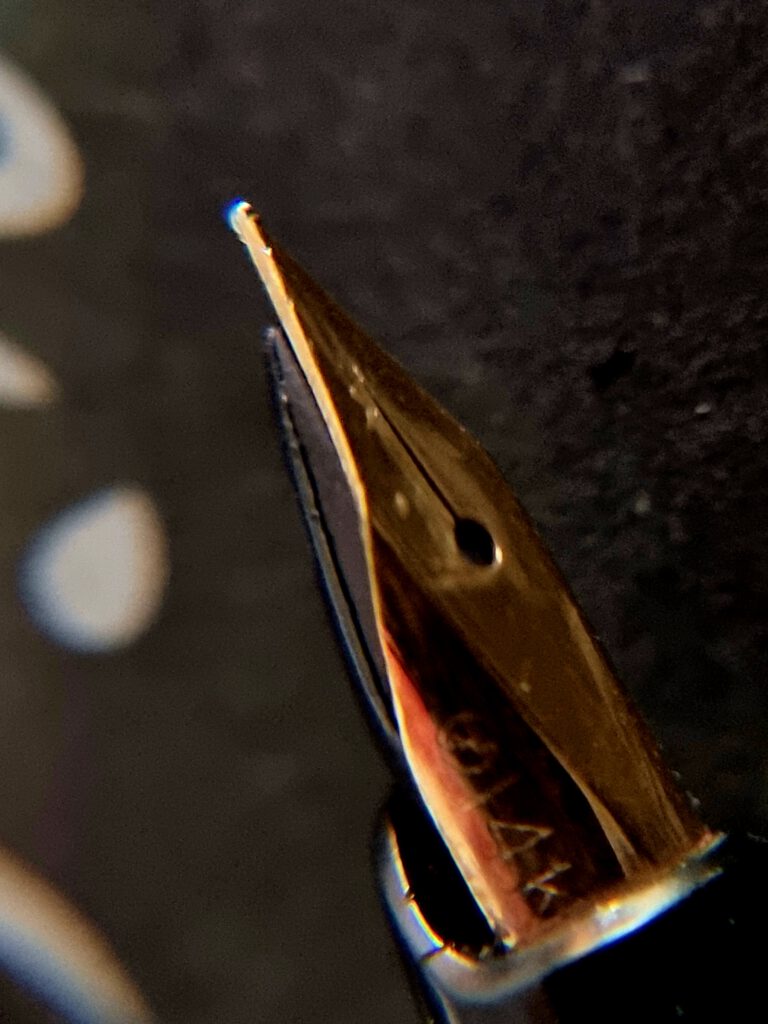

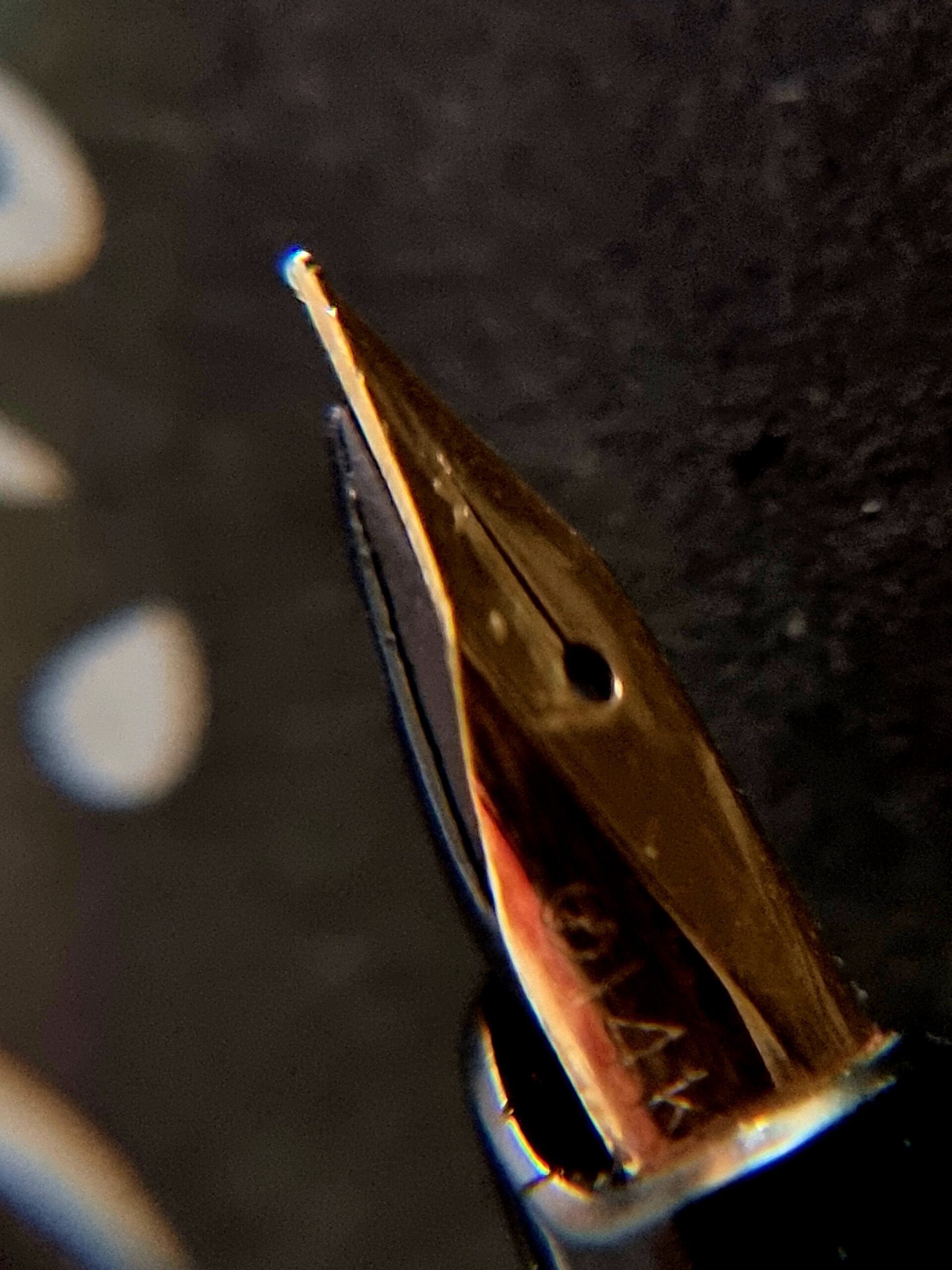

Sailor 1960s - 14k - Reverse Trim - Nib Sideview — **Figure 4’b**. Nib sideview of a 1960s Sailor pocket pen. The pen’s clip is gold-plated, but the rest of the cap and especially the band are chrome-plated – a “reverse trim” in Richard Binder’s taxonomy. The nib is 14k-gold.

Type 7: The Sailor “logo board” nib (Figures 7a and 7b).

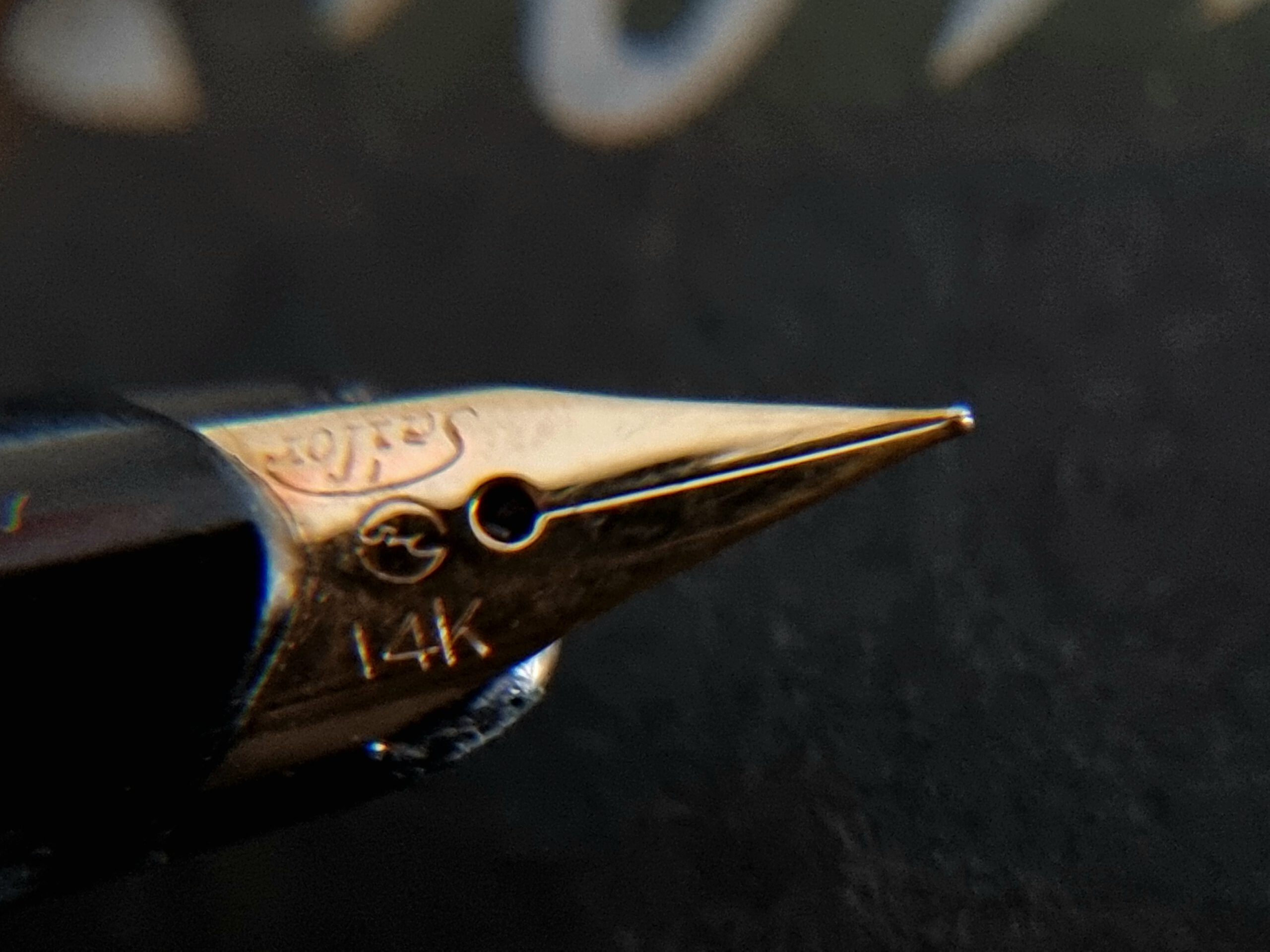

Sailor 1960s - 14k - Brushed Steel Cap - Nib Overview — **Figure 7a**. Nib overview of a 1960s Sailor pocket pen, brushed steel cap and black body, equipped with a 14k-gold nib with a prominent JIS logo.

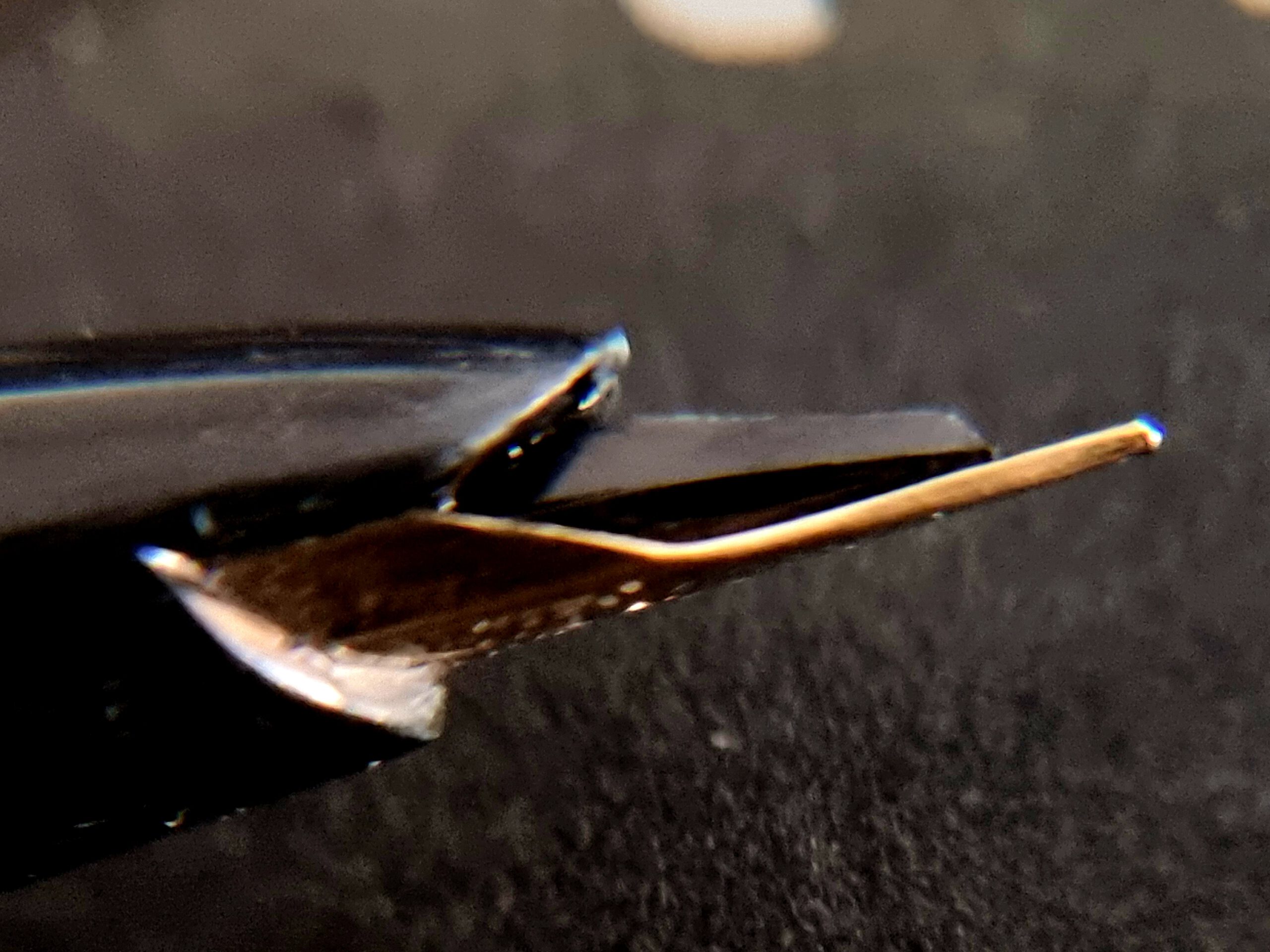

Sailor 1960s - 14k - Brushed Steel Cap - Nib Sideview — **Figure 7b**. Nib sideview of a 1960s Sailor pocket pen, brushed steel cap and black body, equipped with a 14k-gold nib with a prominent JIS logo.

Type 8: The Sailor Magna-L nib (Figures 8a, 8b, and 8c).

The Magna pens were a high-quality line. With the introduction by Sailor of the L-cartridge (advertised as the largest in the market), Sailor created a special model of the Magna, Magna-L, in normal pen size, released concurrently with the Magna-L Mini version. This pen is the former.

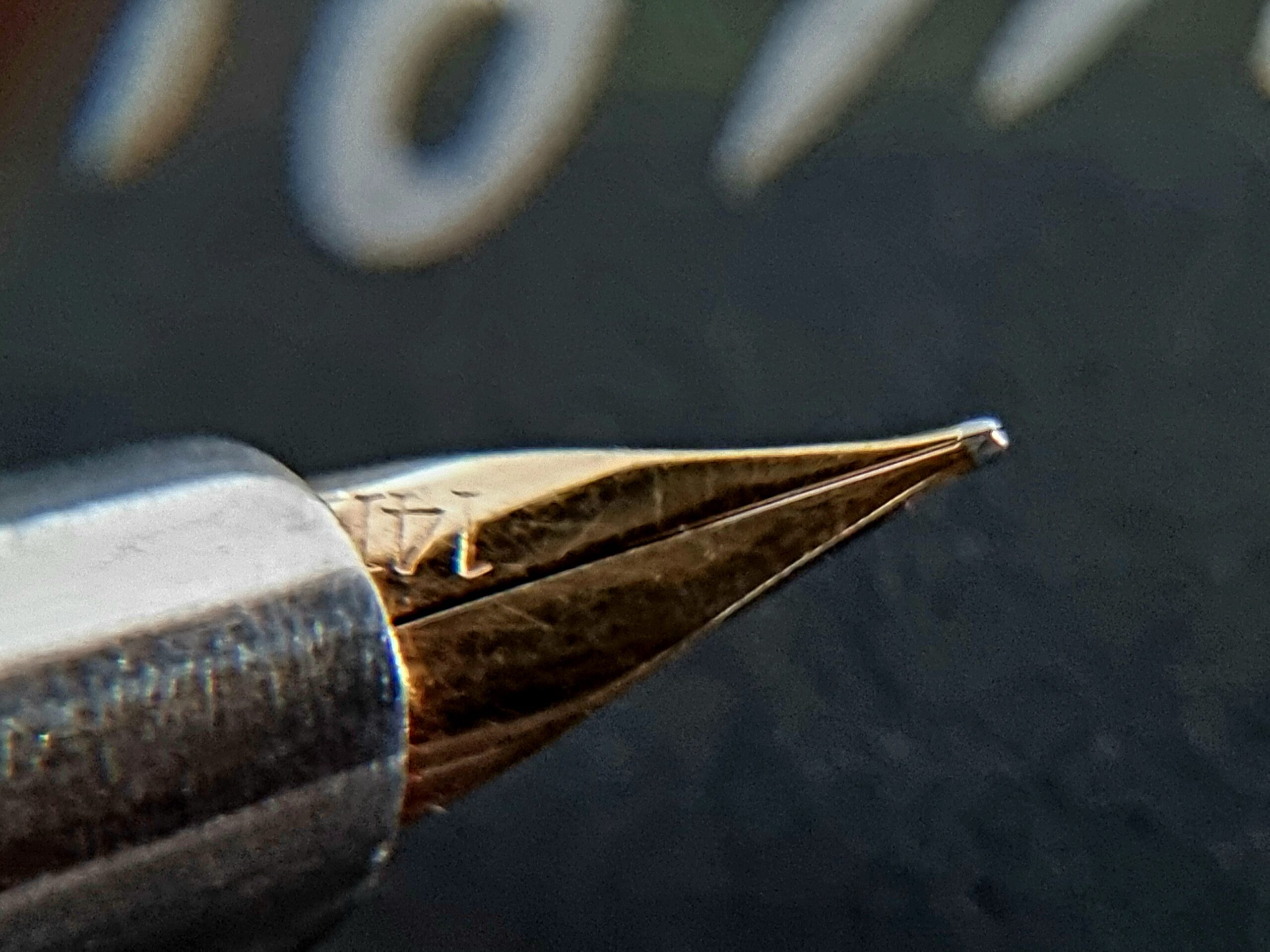

Sailor 1961 - Magna L - 14k - Nib Overview — **Figure 8a**. Nib overview of a Sailor Magna-L Mini, dated “DL”, or December 1961.

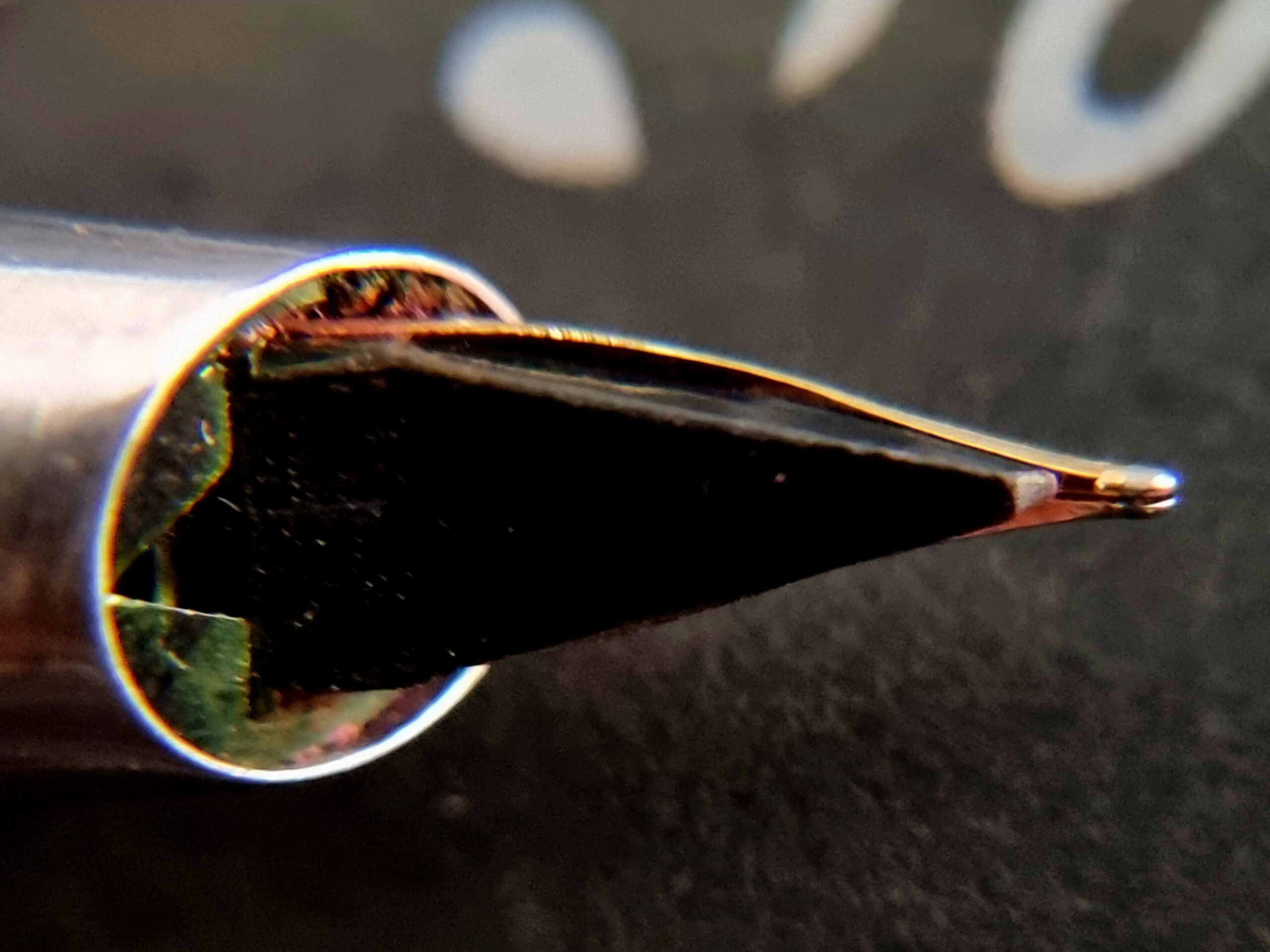

Sailor 1961 - Magna L - 14k - Nib Underview — **Figure 8b**. Nib underview of a Sailor Magna-L Mini, dated “DL”, or December 1961.

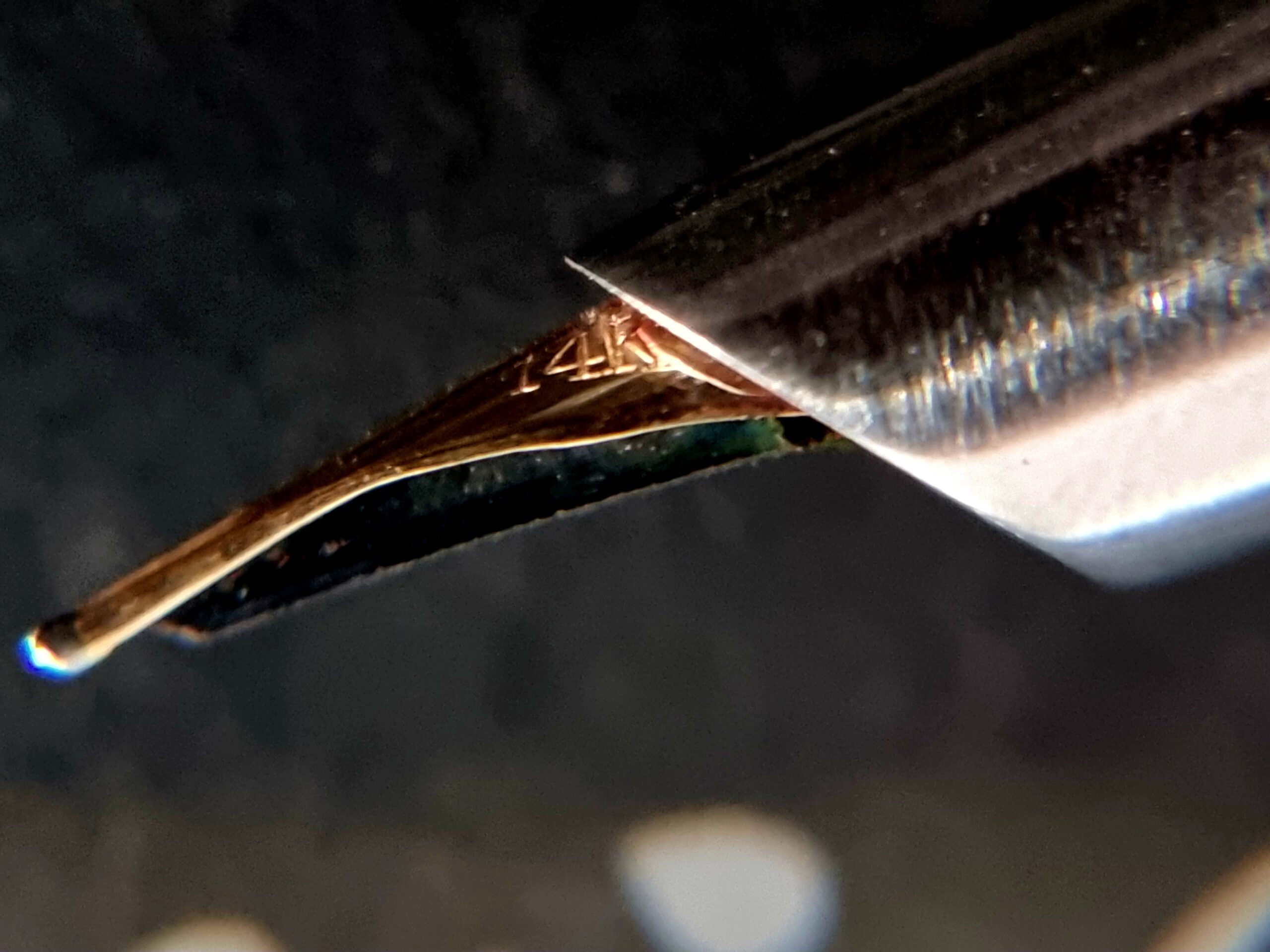

Sailor 1961 - Magna L - 14k - Nib Sideview — **Figure 8c**. Nib sideview of a Sailor Magna-L Mini, dated “DL”, or December 1961.

Type 9: The Sailor Magna-L Mini nib (Figures 9a, 9b, and 9c).

This is the Mini pen based on the Magna-L pen described at Type 8.

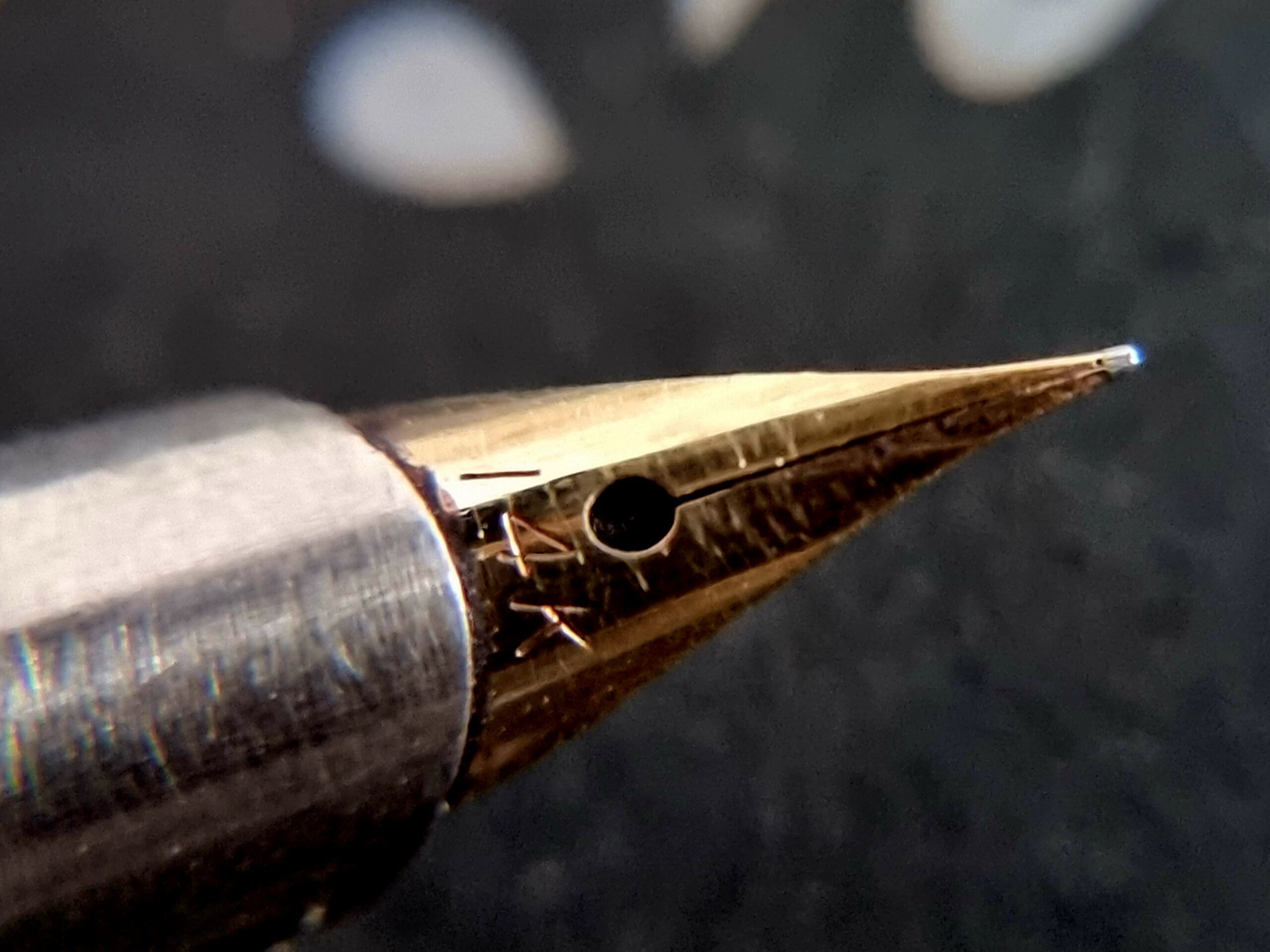

Sailor 1961 - Magna L Mini - 14k - Nib Overview — **Figure 9a**. Nib overview of a Sailor Magna-L Mini, dated “DJ”, or October 1961.

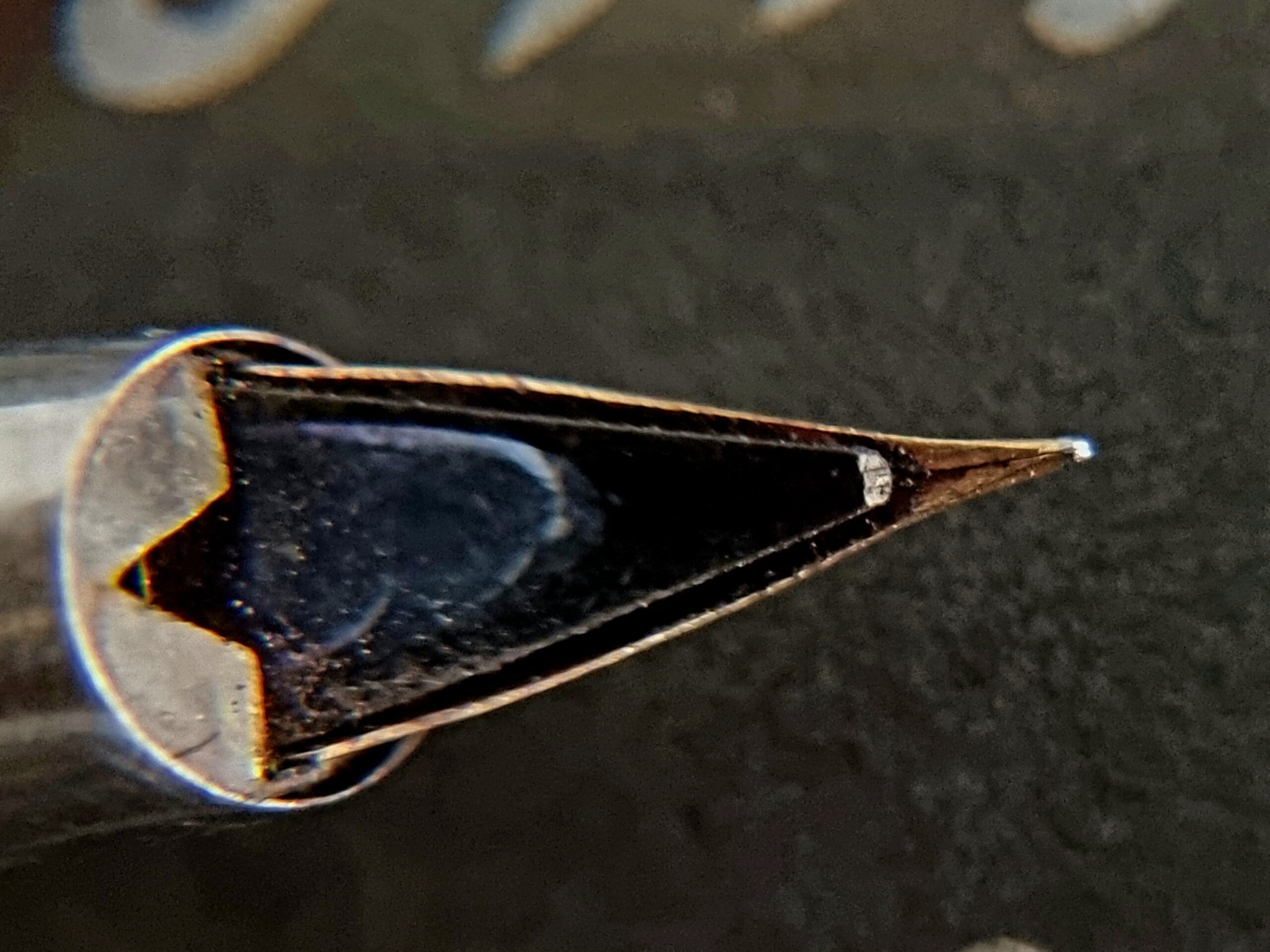

Sailor 1961 - Magna L Mini - 14k - Nib Underview — **Figure 9b**. Nib underview of a Sailor Magna-L Mini, dated “DJ”, or October 1961.

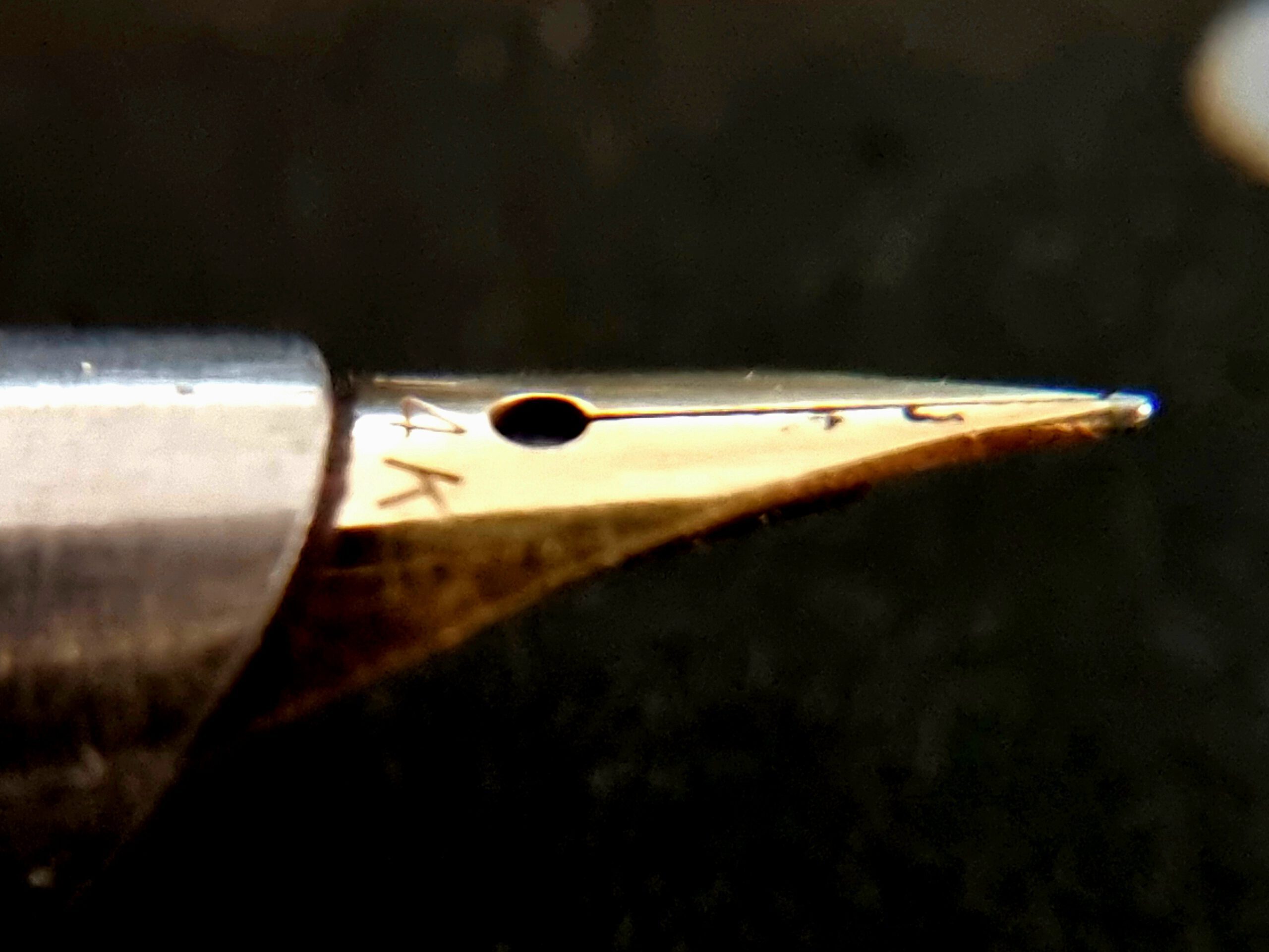

Sailor 1961 - Magna L Mini - 14k - Nib Sideview — **Figure 9c**. Nib sideview of a Sailor Magna-L Mini, dated “DJ”, or October 1961.

To conclude:

This was the second installment in the presentation of 1960s Japanese nibs, and also thr second installment on the part focusing on Sailor nibs of that period.

Enjoy the day.
